performance tuning
2020 BMW 430i xDrive
the beginning: meeting my 430i
When I first got this car, I was thrilled. It was not only my first car with a turbocharged engine, it was my first car ever and I fell in love with it immediately. From that day on, I knew it was the beginning of a journey to make it completely mine. It comes with a B46 2.0L twin-scroll turbocharged engine, making 248 hp and 258 lb-ft of torque. The stock configurations for the 430i provides solid performance already, but it felt like the car was holding back, especially in throttle resonse and power delivery.
This eventually sparked my journey into performance tuning. I wanted to see how far I could take the car without compromising its drivability. It wasn’t just about power—it was about creating a car that would be an extension of myself, that reflected my passion for engineering and automotives.

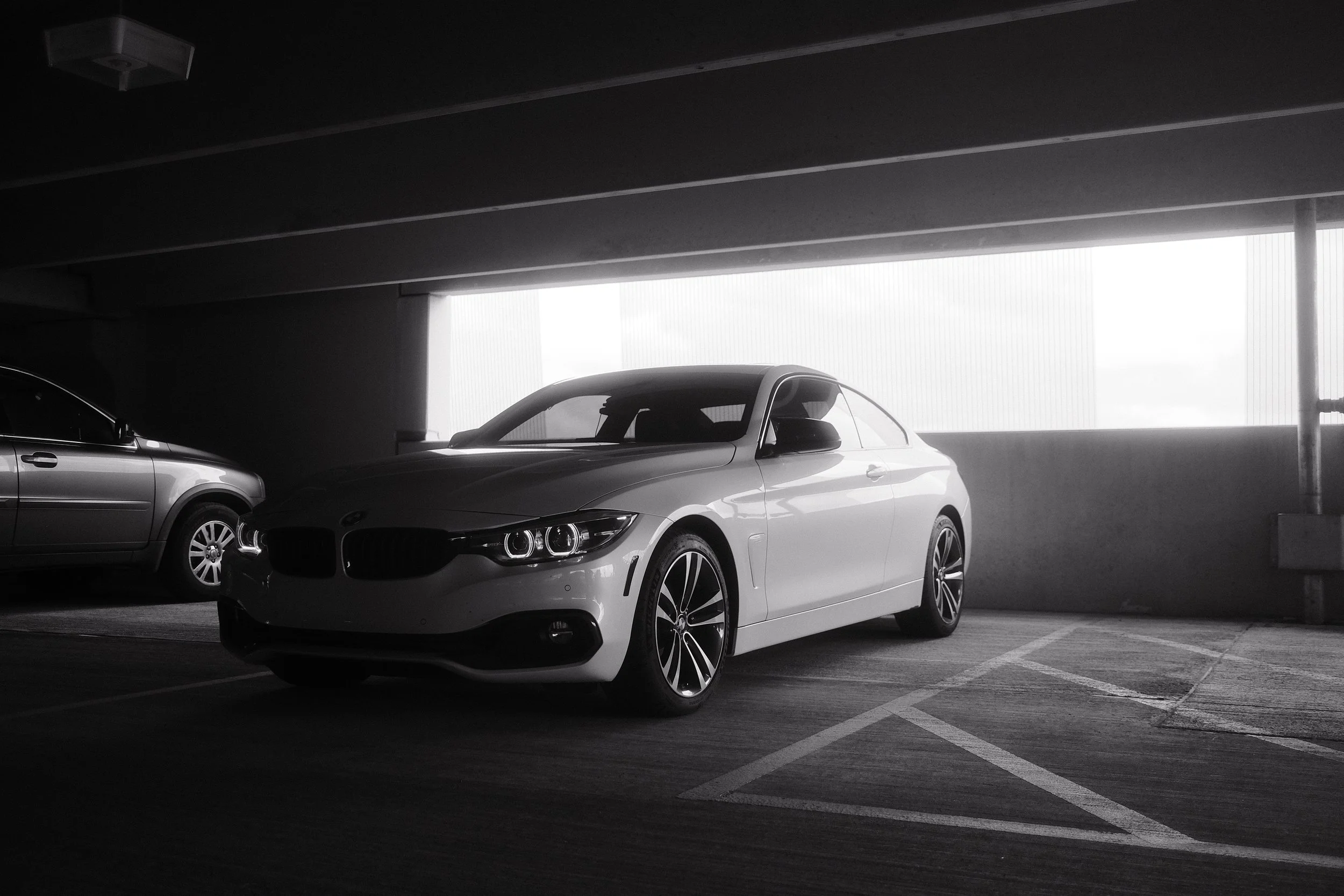

the day i got it
first steps: exploring modifications
I didn’t know much about what tuning a car entailed, so I did my research and eased my way into tuning. One of the first things I did to the car was installing the Burger Motorsports (BMS) cold air intake. This upgrade was designed to increase airflow to the engine, slightly improving throttle response and as well as very minor increase in horsepower. Most importantly, it adds a really cool turbo spool sound that makes my inner-child jolly.
post-install sound clip
This was the first bolt-on modification that I did. Even though it was really simple, I felt really proud of it and happy with it. It was my first encounter with working under the hood of this car, and I taught me how the stock intake system restricted airflow to the turbo. Encouraged by the improvements from it, I decided to dive deeper into tuning. I need something that wasn’t intrusive of the ECU, something that didn’t need a full ECU remap.
B46 engine
adding power: JB4 tuning
The JB4 is a piggyback tune, i.e. plug and play tune installed between my car’s sensors and its DME/ECU (computer) that can manipulate the performance through these connections. It allowed me to adjust boost levels and monitor key engine parameters in real time without permanently altering factory setting. This made it a perfect choice for learning about tuning while maintaining reliability.
I selected the JB4 because of it’s natural flexibility as well as a strong reputation in the BMW community. There are off-the-shelf (OTS) maps that I can immediately choose to flash the car in, as well as fully manual customization that allows fine-tuning settings like boost-pressure, air-fuel-ratio (AFR) and ignition timing. Compared to other tuning options, the JB4 was simply a more accessible way to increase power while keeping the car’s safety mechanisms intact.

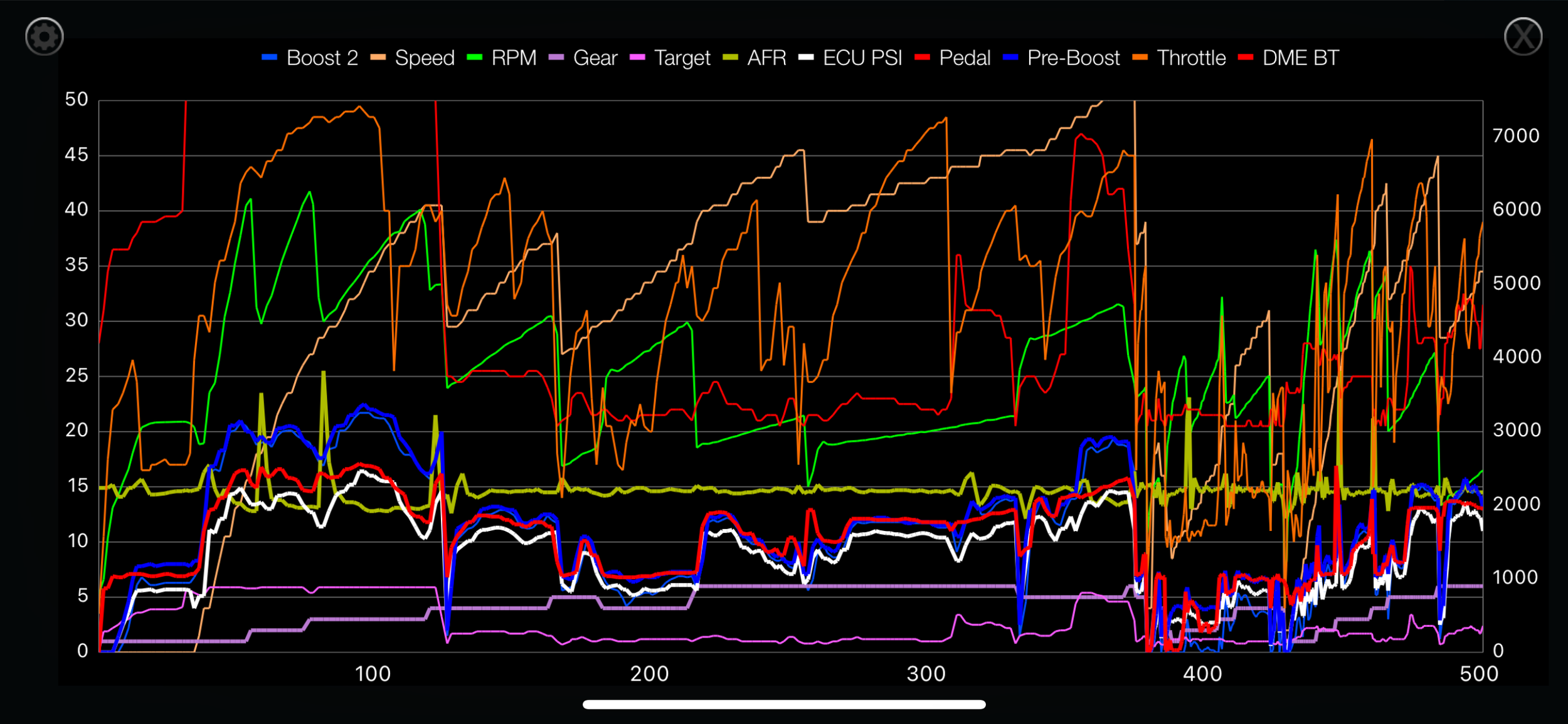

Using the JB4 app, I analyzed the data logs to ensure the car was operating within safe parameters. The app display metrics such as actual vs. target boost levels and AFR.
JB4 module
maintenance mods: aluminum charge pipe and air intake pipe
FTP charge pipe and clamps
the process:
The stock plastic charge pipe on the 430i is notorious for cracking under high boost pressures, especially after tuning. This includes the intake pipe that connects the BMS cold air intake (CAI) to the turbo. Although the car only had around 38,000 miles at this point, I wanted to make sure that the components can withstand the higher boost pressures I was running. To do that, I upgraded both the charge pipe and the air intake pipe to an aluminum version from FTP Motorsports.
The new aluminum intake pipe won’t expand under higher boost pressures. Additionally, it also eliminated the OEM sound chamber which restricted turbo responds and mid-range and top-end power.
Installing these parts was more challenging as it required removing several components to access the stock pipe, and aligning the new one perfectly to avoid any leaks. To say the least, it took a lot of patience and time to complete this modification. However, the effort was worth it—this upgrade gave me peace of mind knowing the system could handle increased boost levels without risking failure. Moreover, it made the turbo spool sound even louder as the aluminum materials allowed the sound to resonate louder.
This process taught me the importance in anticipating weak points in the system when making performance upgrades. This proactive step saved me from potential breakdowns later.
installed chargepipe, intake pipe, and BMS intake
FTP intake pipe and clamps
enhancing exhaust flow: CTS turbo high-flow catted downpipe
After having the tune and the supporting modifications to run higher boost, I decided to upgrade the downpipe. The CTS Turbo High-Flow Catted Downpipe was one of the most transformative upgrades. It is a 200-cell catalytic downpipe that replaced the restrictive stock downpipe to improve exhaust flow, turbo efficiency, overall engine performance, and most excitingly–exhaust note.
The downpipe is a key component in the exhaust system, it connects the turbocharger’s turbine housing to the mid-pipe or catalytic converter. It is critical in directing exhaust gases away from the turbo to maintain optimal operating temperatures, increasing the efficiency of the process and improve the turbo’s ability to spool quickly while maintaining consistent boost levels.
Stock downpipes often have higher cell densities (400-600 cells per square inch) in the catalytic converter, which restricts exhaust flow to meet emission standards. The 200-cell, however, reduces the backpressure experienced by the system, allowing exhaust gases to flow more freely. This has three main benefits:
Reduced Turbo Lag: Less backpressure allows the turbo to spool faster, improving throttle response
Increased Power: Improved exhaust flow enables the engine to maintain higher boost levels, enhancing mid-range and top-end performance.
Deeper Exhaust Note: The reduced restriction creates a sportier, more aggressive sound.
installation and challenges:
This installation took me 3 days to complete. It was definitely the most difficult job I have done on this car as it required careful navigation of tight spaces to remove the stock downpipe that is larger and thicker in size. Ideally, one would put the car on a lift and raise it to be able to access the downpipe from below the car, however, I only had car ramps as an option to do so which added to the challenge of maneuvering the downpipe in removal. Additionally, the larger size of the stock downpipe paired with an additional metal bracket that it came with, made m take the most amount of time. However, after a few days and a broken post-cat oxygen sensor, I was able to install the new part.
results
The downpipe absolutely changed this car. The turbo spooled faster, there’s noticeably less turbo lag and there is more mid-range power delivery. Paired with the JB4 tune, the turbo efficiency is maximized allowing the car to hold boost more consistently. Theoretically these two installations have added 40 hp.
Beyond performance gains, I was most excited about the deepened exhaust note. It gave the car a more aggressive sound for a 4 cylinder engine without any drone. This upgrade didn’t just add power–it enhance the overall driving experience, making acceleration smoother and much more responsive.
Stock (bottom) vs CTS downpipe (top)
fine-tuning the zf8 transmission: xHP Stage 3
While the engine upgrades transformed the car’s power delivery, the transmission tune by xHP brought everything together. The ZF8 transmission is an 8-speed-automatic transmission that BMW also incorporates in newer G-chassis M cars like the M3 and M4, albeit with different tuning.
The ZF8 by itself is a highly versatile gearbox that is known for its balance of efficiency and performance. While the stock programming of the ZF8 in a 430i is great for daily driving, it lacks the sharpness and immediacy found in dual-clutch transmissions (DCT). Granted, a ZF8 will not perform the same levels as a DCT, but, the bridge can be gapped. This transmission utilizies a planetary gear system, that offers faster and efficient gear shift compared to older-torque-converter automatics. It has a wide gear ratio spread and the modular design of it allows for tuning across a range of applications from daily drivers to high-performance sports cars.
Similar to the JB4, there are OTS maps that can be easily flashed from xHP. Stage 1 is setup to be made for sportier yet economy aware drivers, Stage 2 improves it and is made for people wanting the most from their transmission on street use, Stage 3 raises the bar in absolutely every aspect. So, I flashed my car to Stage 3 and let the software settle in for a few days until I tried a few controlled launches to test the difference.
where it stands today
With all the upgrades so far, the car has been completely transformed from its stock form. The combination of better airflow, optimized boost control, and a more refined transmission mapping has resulted in a much more responsive, engaging, and refined driving experience.
At this stage, I feel that the car is at a proper balance for both daily driving and spirited performance, with a noticeable increase in power and efficiency While I’m happy with where it stands, there’s always room for improvement. Looking ahead, I’m considering further upgrades such as suspension modifications for better handling, an intercooler upgrade to maintain intake temperatures, and possibly a turbo upgrade for even more power.
For now, the car already delivers a stronger mid-range punch, quicker shifts, and a more dynamic driving feel. This project has also reinforced the importance of system optimization and data-driven tuning, and iterative improvement. It has strengthened my abilitu to analyze data, apply engineering principles to real-world scenarios, and systematically improve mechanical systems. Every modification so far has deepened my appreciation for how theory translates into real-world performance. More than that, it’s reinforced why I love working with cars–the process of testing, iterating, and continuously improving. I’m excited for the future that I’ll have with this project.
